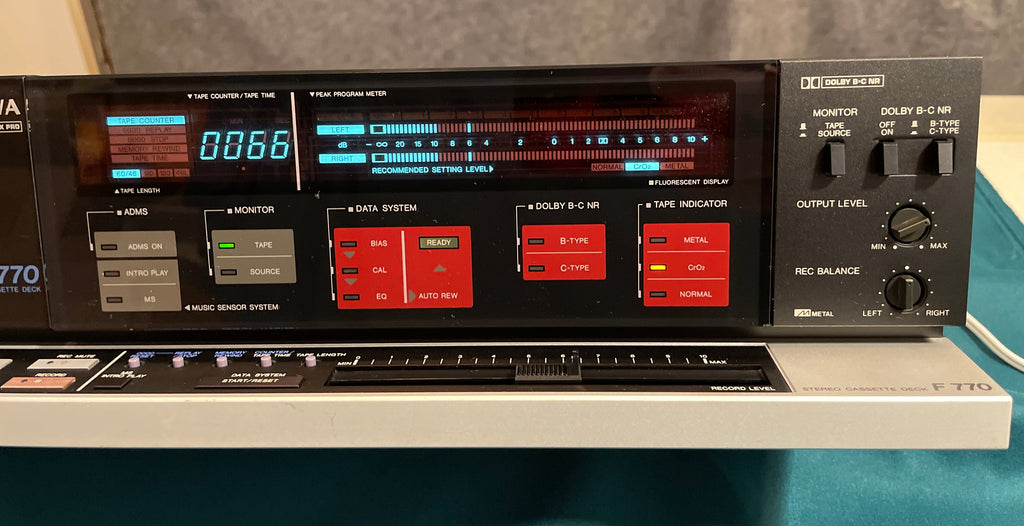

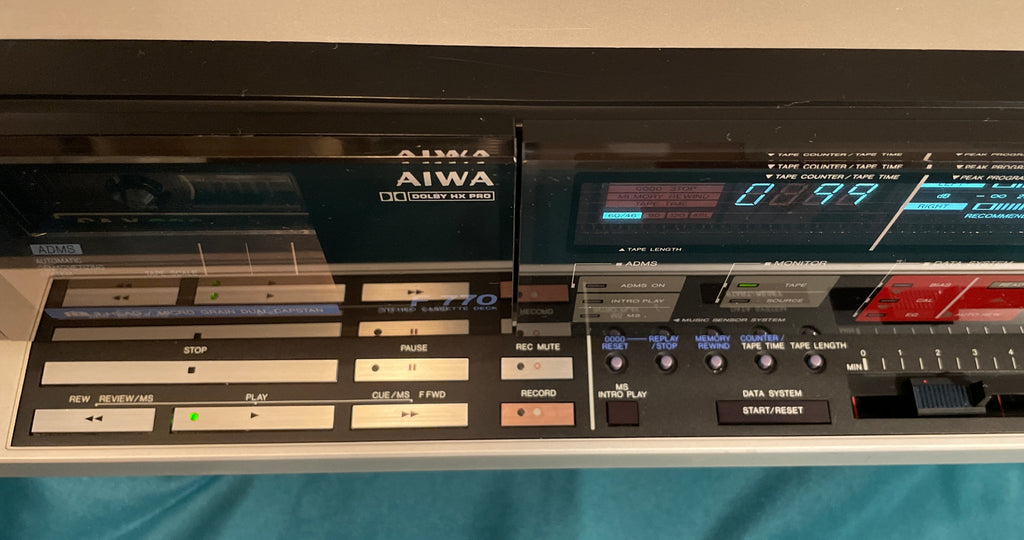

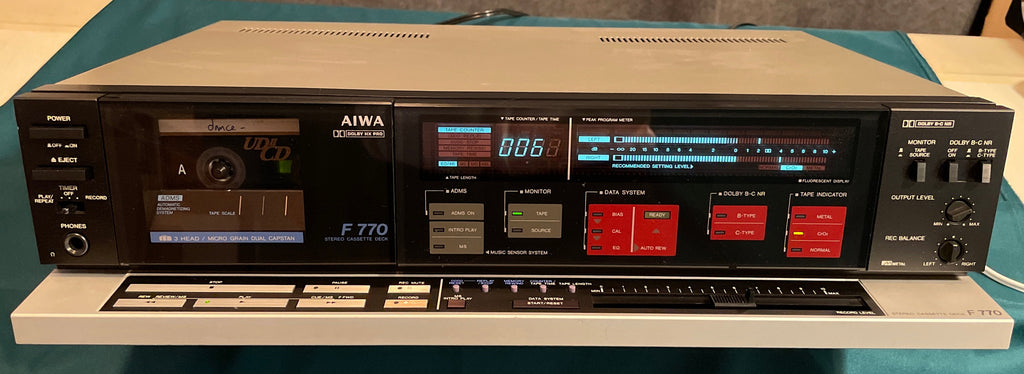

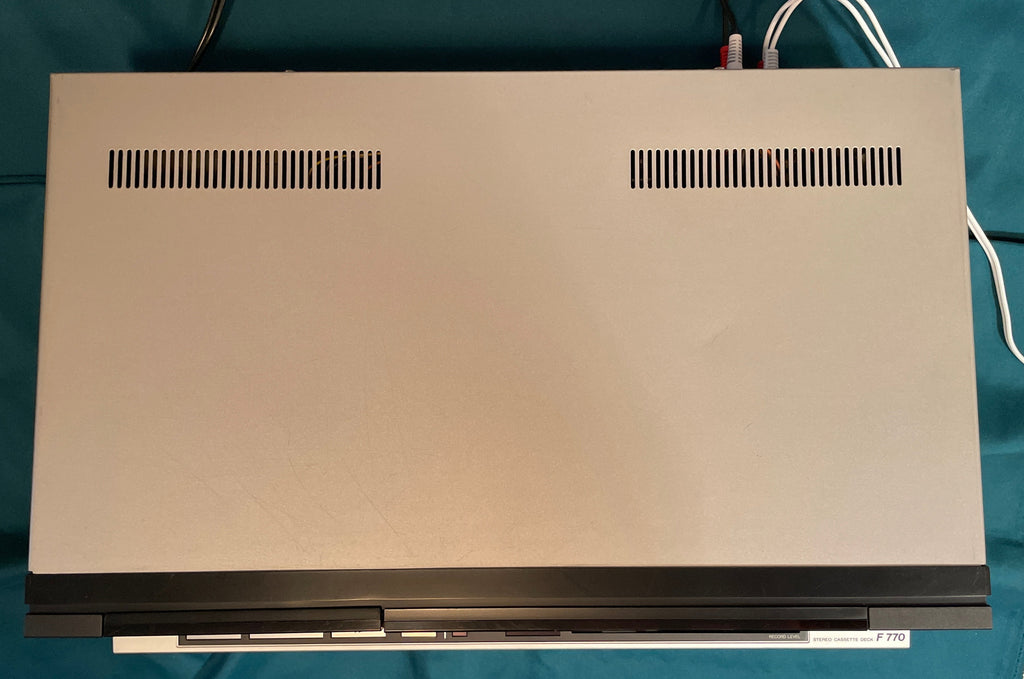

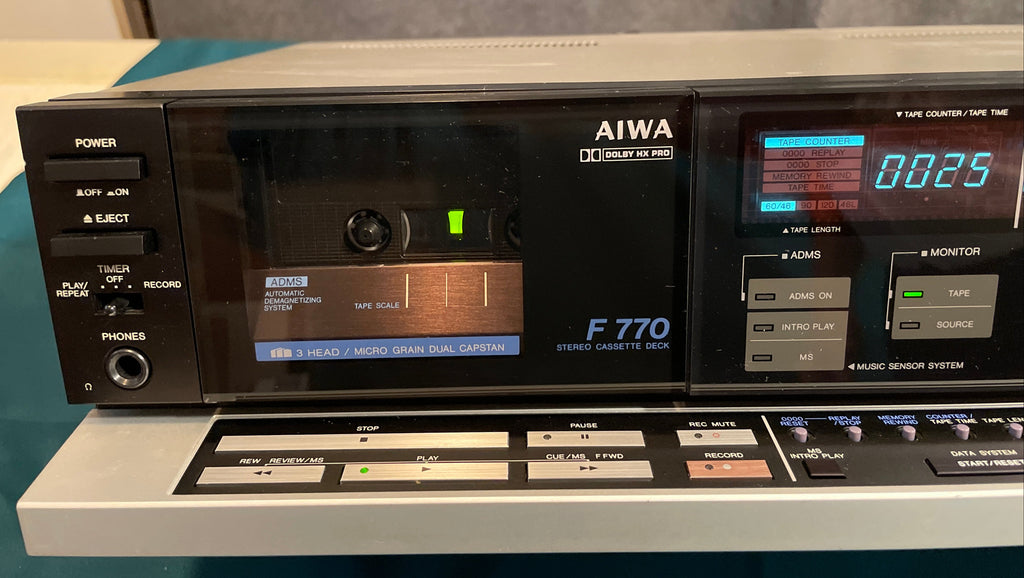

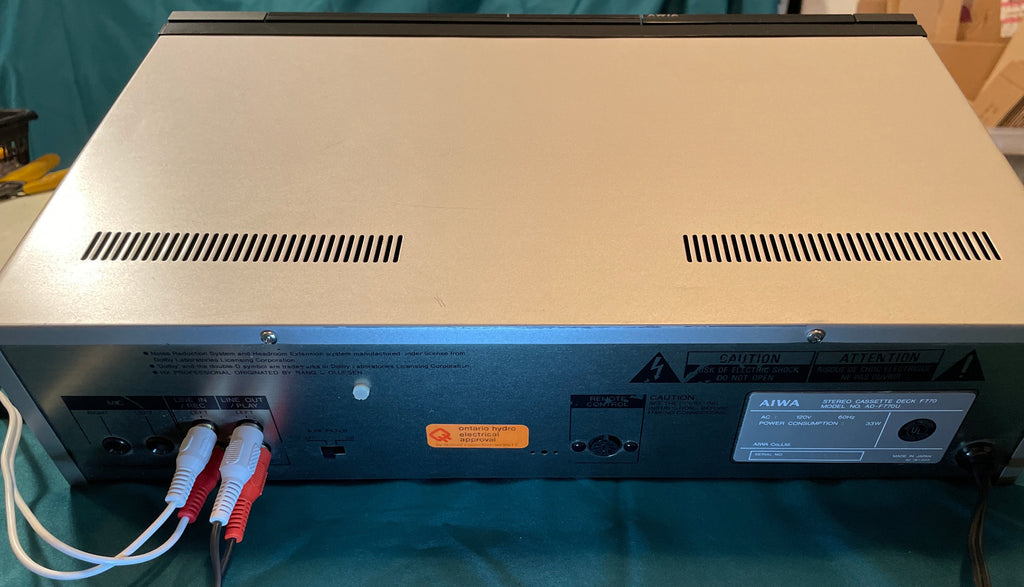

AIWA F-770 3-Head Cassette Deck - 1983
Serial number: 10703170
Specifications
Type: Auto Reverse, 3-head, single compact cassette deck. Features and specifications:
- Advanced System DATA (Digital Automatic Tape Adaptation): A sophisticated microcomputer system that automatically calibrates Bias and Sensitivity for optimal performance with any tape.
- Head Maintenance ADMS (Auto De-Magnetizing System): Automatically de-magnetizes the record/playback heads every time the unit is powered on. Transport Full logic transport (smooth, precise operation) with a real-time digital counter
- 4-track, 2-channel stereo
- Noise Reduction: B, C
- Headroom Extension: HX Pro
- Frequency Response: 20Hz to 20kHz
- Signal to Noise Ratio: 75dB with Dolby C
- Wow and Flutter: 0.025%
- Dimensions: 430 x 135 x 420.7mm
- Weight: 5.5kg = 12.2 lbs
- Dimensions:
Performance: Fully working as intended. Seems to have trouble with the odd retail pre-recorded music cassettes. I can't figure it out, as some are fine, while others... not really (?!).
All other TDK, Maxell, Sony, Fuji, BASF, Denon, etc tapes, it performs perfectly.
Update: (October 8, 2025) Just tested the unit for recording and while some critical functions seem to be spot on perfect, ie. calibration is perfect, something is wrong with the speed while it records, and hence it distorts the recording enough to be noticeable (wobbly). The unit will definitely need some attention on this front. Price will reflect this glitch. See the 2 videos provided.
Serviced: The deck is performing well within its playback and recording (not anymore) functions.
The unit was recently serviced (June 26, 2023), but it didn't get much use. Time for it to find a new home.
* Replaced drive motor and installed correct belt.
* Replaced 2 pinch rollers
* Demagnetized, cleaned heads, and capstans.
* Set correct playback speed according to Tandberg speed-test tape.
* Verified azimuth is correct
* Tested recording and playback for type I, II, and IV tapes.
* A new electronic board was added to replace a damaged board that serviced the motor.
Shipping: Recent shipping of a similar deck (size and weight) to New Jersey, from Ontario, Canada, cost $67.00 USD.
US customers: Please consider that this deck... manufactured in Japan ~42 years ago, may be subjected to a 15%. tariff rate in 2025.
For some countries: This Cassette Deck can be shipped to most places in the world. Please send me an email with your request and address. I will find the best possible shipping rate available. Western Union may be the only payment method acceptable for some parts of the world. This deck works only with 120volts and set for 60Hz.
Note: Contrary to what the listing may show at the top of the page, if you are from Canada, taxes will be added according to each Province's tax laws.
